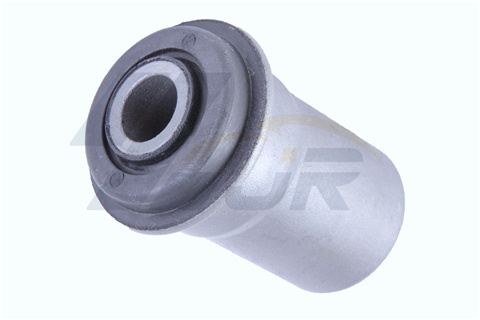

A control arm bushing, often referred to simply as an arm bushing or suspension bushing, is a critical component in a vehicle's suspension system. The control arm itself is a key part that connects the wheel hub and steering knuckles to the vehicle's frame, allowing for smooth movement and alignment of the wheels. The control arm bushing serves as a cushion between the control arm and the vehicle’s frame, absorbing shocks and vibrations from the road.
The bushing is typically made of rubber or a synthetic material, which provides flexibility and dampens vibrations. This cushioning effect is essential for maintaining vehicle stability and comfort. Without bushings, the metal components of the control arm would grind against each other, leading to wear and tear, noise, and a rough driving experience. In addition to absorbing vibrations, control arm bushings also help maintain proper wheel alignment, ensuring that the vehicle handles well, especially during turns and when driving over uneven surfaces.
Control arm bushings play a vital role in the overall safety of the vehicle. They help keep the wheels aligned, which is crucial for maintaining proper traction and control. If the bushings wear out or become damaged, it can lead to a range of issues, including poor handling, uneven tire wear, and even potential loss of control in extreme cases.
Replacing control arm bushings can be a challenging task, but it's a necessary one if they are worn or damaged. If you notice symptoms such as clunking noises, uneven tire wear, or poor handling, it might be time to replace your control arm bushings. Here's a step-by-step guide on how to replace control arm bushings:
Tools and Materials: You’ll need a variety of tools including a jack and jack stands, a socket set, wrenches, a torque wrench, a hammer, a pry bar, and a bushing press or a bushing removal tool. Additionally, make sure to have the new control arm bushings ready for installation.
Safety First: Park the vehicle on a flat surface, engage the parking brake, and wear safety glasses and gloves. Ensure that the car is stable before you start working under it.
Lifting the Vehicle
Use a jack to lift the vehicle and then secure it with jack stands. Make sure the car is stable before proceeding. Remove the wheel to gain access to the control arm.
Locate the control arm and the bushing that needs to be replaced. The control arm is connected to the vehicle's frame and the wheel hub. You’ll need to disconnect it from both ends.
Use a socket set to remove the bolts holding the control arm in place. Depending on the make and model of your vehicle, you may need to remove additional components such as the sway bar or stabilizer links to access the control arm.
Once the bolts are removed, use a pry bar to carefully remove the control arm from its mounting points.
The old bushings are typically pressed into the control arm. You can use a bushing press or a bushing removal tool to remove them. If you don’t have a press, you can use a hammer and a socket to drive the old bushing out.
Be careful not to damage the control arm while removing the old bushings. Clean the control arm thoroughly to remove any rust or debris before installing the new bushings.
Press the new bushings into the control arm using a bushing press. Make sure the bushings are seated properly and aligned with the mounting points.
If you're using a hammer and socket, be gentle to avoid damaging the new bushings. Ensure they are fully seated and flush with the control arm.
Reattach the control arm to the vehicle's frame and wheel hub. Align the bolt holes and tighten the bolts using a torque wrench. Follow the manufacturer’s specifications for the correct torque settings.
Reattach any components that were removed earlier, such as the sway bar or stabilizer links.
Once everything is reassembled, replace the wheel and lower the vehicle back to the ground. Tighten the lug nuts to the manufacturer’s recommended torque settings.
Take the vehicle for a test drive to ensure that everything is working correctly. Listen for any unusual noises and pay attention to the handling. If the vehicle feels stable and the noise is gone, the replacement was successful.
Driving with bad control arm bushings is not advisable, as it can lead to a host of problems, some of which can compromise your safety. The lifespan of control arm bushings varies depending on driving conditions, the quality of the bushings, and the type of vehicle. However, once the bushings start to fail, it’s crucial to address the issue promptly.
Clunking Noises: One of the most common signs of worn-out control arm bushings is a clunking noise coming from the suspension, particularly when going over bumps or during turns. This noise is caused by the metal components of the control arm making contact with each other due to the worn-out bushing.
Vibration: Another symptom is excessive vibration in the steering wheel, especially at high speeds. The bushings’ primary function is to absorb shocks and vibrations, so when they wear out, you’ll feel the effects directly in the steering.
Uneven Tire Wear: Bad bushings can cause the wheels to become misaligned, leading to uneven tire wear. If you notice that your tires are wearing out faster on one side, it could be a sign of bad control arm bushings.
Poor Handling: Worn bushings can also affect the vehicle’s handling, making it feel unstable, especially during turns. You may notice that the vehicle pulls to one side or feels loose when steering.
Increased Wear on Other Components: Bad bushings can cause additional stress on other suspension components, leading to premature wear and the need for more extensive repairs.
Loss of Control: In extreme cases, severely worn bushings can lead to a loss of control, particularly during sharp turns or emergency maneuvers. This can increase the risk of accidents.
Increased Repair Costs: Ignoring the problem can lead to more expensive repairs down the line. For instance, if the control arm itself gets damaged due to bad bushings, you may need to replace the entire assembly.
The length of time you can safely drive with bad control arm bushings depends on the severity of the wear. In the early stages, you might be able to drive for a few weeks or even months before the symptoms become severe. However, as the bushings deteriorate further, the risks increase significantly.
If you notice any of the symptoms mentioned above, it’s best to have the bushings inspected and replaced as soon as possible. Continuing to drive with bad bushings can lead to more significant issues and increase the likelihood of an accident.
In general, it’s not advisable to drive for extended periods with bad control arm bushings. Addressing the issue promptly can prevent further damage to your vehicle and ensure your safety on the road.
Control arm bushings are small but crucial components of your vehicle's suspension system. They ensure smooth handling, absorb shocks, and maintain proper wheel alignment. When these bushings wear out, it can lead to a range of issues, from annoying noises to potentially dangerous handling problems. Replacing control arm bushings may require some mechanical knowledge and tools, but it's a task that can be managed with patience and the right approach.
